Tableau & Snowflake: COVID-19 by County Quadrants & Maps fixing Utah Counties

Posted by

Last week I published a blog article showcasing how to create a COVID-19 quadrant scatter plot by county and turn the quadrants into a map by county https://bigdatadave.com/2020/11/22/tableau-snowflake-covid-19-by-county-quadrants-maps/. As you can see I had a problem with the big hole in Utah. “Utah is reporting county data somewhat differently than many other states. The larger-population counties are reporting confirmed cases and deaths at the county level. However, the smaller counties are banded together into county groups. This is in an effort to protect identities of individuals.” I just had to fix this as it was ruining my beautiful map.

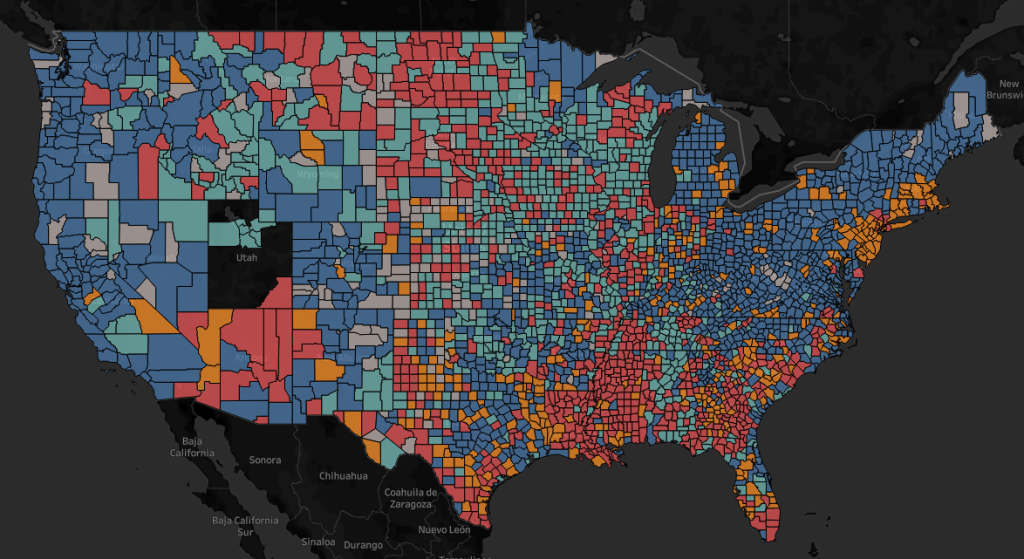

US Map as of 21-Nov-2020 with the big hole in Utah

Hole By Design
This is by design and I could easily see this when executing queries scoped to Utah against the JHU data set.

  SELECT JHU.FIPS, JHU.PROVINCE_STATE, JHU.COUNTY, JHU.DATE, GEOSQL.COUNTY_POPULATION,
    SUM(JHU.CASES) AS COUNTY_CASES,
    DIV0(COUNTY_CASES,GEOSQL.COUNTY_POPULATION) AS CASES_PER_CAPITA_COUNTY,
    CASES_PER_CAPITA_COUNTY * 100000 AS CASES_PER_100K
  FROM STARSCHEMA_COVID19.PUBLIC.JHU_COVID_19 JHU
  LEFT JOIN (
    SELECT LEFT(CBG,5) AS FIPS, SUM(GEO.TOTAL_POPULATION) AS COUNTY_POPULATION
    FROM SAFEGRAPH_SAFEGRAPH_SHARE.PUBLIC.US_POPULATION_BY_SEX_GEO GEO GROUP BY FIPS) GEOSQL
    ON GEOSQL.FIPS = JHU.FIPS
  WHERE JHU.COUNTRY_REGION = 'United States' AND JHU.DATE = TO_DATE('2020-11-21') AND JHU.CASE_TYPE IN('Confirmed')
  AND JHU.PROVINCE_STATE = 'Utah'
  GROUP BY JHU.PROVINCE_STATE, JHU.COUNTY, JHU.FIPS, GEOSQL.COUNTY_POPULATION, JHU.DATE, JHU.CASE_TYPE
  ORDER BY JHU.FIPS;

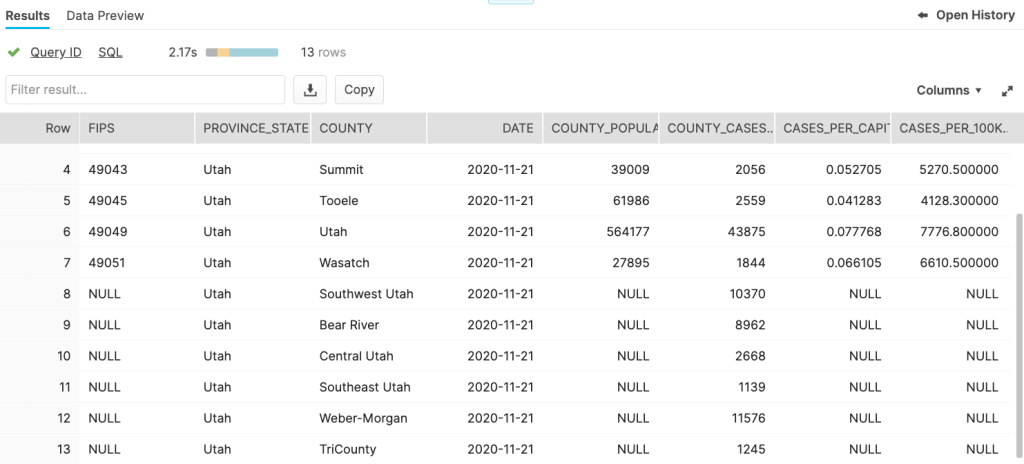

NULL Values for Counties the do not Exist in Utah, these are County Groups

What are These County Groups?
The best summary of the issue with some mappings I found was here in GitHub: https://github.com/CSSEGISandData/COVID-19/issues/3066.

County NameJHU UID Code
Bear River84070015
Central Utah84070016
Southeast Utah84070017
Southwest Utah84070018
TriCounty84070019
Weber-Morgan84070020

The best mapping of counties to these administrative zones I found was here: https://ualhd.org/

Allocating Cases to Populations
Now that we have this information of how these special Administrative zones map to Counties we can allocate cases to the actual counties. The best way I could come up with is to use country population / administrative area population. Let’s create a table with these mappings and county populations to join back to the base JHU data.

/*--------- Utah FIPS Mapping Allocation by Population ---------------------------------------------------------
County Name     JHU UID Code
Bear River	    84070015
Central Utah	84070016
Southeast Utah	84070017
Southwest Utah	84070018
TriCounty	    84070019
Weber-Morgan	84070020

--https://github.com/CSSEGISandData/COVID-19/issues/3066
Southeast Utah, Utah:
Carbon County, Emery County, and Grand County.
49007, 49015, 49019

Weber-Morgan, Utah:
Weber County and Morgan County.
49057, 49029

Central Utah, Utah:
Juab County, Millard County, Piute County, Sanpete County, Sevier County, and Wayne County.
49023, 49027, 49031, 49039, 49041, 49055

TriCounty, Utah:
Uintah County, Duchesne County, and Daggett County.
49047, 49013, 49009

Bear River, Utah:
Box Elder County, Cache(?), Rich(?).
49003, (?)49005, (?)49033

Southwest Utah, Utah:
Washington County, Iron County, Kane County, Beaver County, and Garfield County
49053, 49021, 49025, 49001, 49017
--------------------------------------------------------------------------------------------------------------*/
--CREATE TABLE & INSERT VALUES ABOVE
CREATE OR REPLACE TABLE STARSCHEMA_COVID19_QA.PUBLIC.TBL_UTAH_FIPS (
    AREA_NAME varchar(50),
    STATE varchar(50),
    FIPS integer,
    COUNTY_NAME varchar(50),
    POPULATION integer
);


--INSERT MAPPING VALUES
--https://www.utah-demographics.com/counties_by_population
INSERT INTO STARSCHEMA_COVID19_QA.PUBLIC.TBL_UTAH_FIPS VALUES
('Southwest Utah','Utah',49001,'Beaver',6710),
('Bear River','Utah',49003,'Box Elder',56046),
('Bear River','Utah',49005,'Cache',128289),
('Southeast Utah','Utah',49007,'Carbon',20463),
('TriCounty','Utah',49009,'Daggett',950),
('TriCounty','Utah',49013,'Duchesne',19938),
('Southeast Utah','Utah',49015,'Emery',10012),
('Southwest Utah','Utah',49017,'Garfield',5051),
('Southeast Utah','Utah',49019,'Grand',9754),
('Southwest Utah','Utah',49021,'Iron',54839),
('Central Utah','Utah',49023,'Juab',12017),
('Southwest Utah','Utah',49025,'Kane',7886),
('Central Utah','Utah',49027,'Millard',13188),
('Weber-Morgan','Utah',49029,'Morgan',12124),
('Central Utah','Utah',49031,'Piute',1479),
('Bear River','Utah',49033,'Rich',2483),
('Central Utah','Utah',49039,'Sanpete',30939),
('Central Utah','Utah',49041,'Sevier',21620),
('TriCounty','Utah',49047,'Uintah',35734),
('Southwest Utah','Utah',49053,'Washington',177556),
('Central Utah','Utah',49055,'Wayne',2711),
('Weber-Morgan','Utah',49057,'Weber',260213);

Now a CTE can be used to pull out the special Utah counties and allocate the cases to these base counties of the special administrative zones. These are the key lines to the SQL besides the joins that does the allocation.
(SUM(UTAHSQL.POPULATION) OVER (PARTITION BY UTAHSQL.AREA_NAME))::INTEGER AS AREA_POPULATION,
(SUM(JHU.CASES) * (SUM(UTAHSQL.POPULATION) / AREA_POPULATION))::INTEGER AS COUNTY_CASES_ALLOCATED_BY_POPULATION,

--MAKE JOIN AND ALLOCATION SQL IF NULL FOR UTAH
WITH
counties AS (
  SELECT JHU.FIPS, JHU.PROVINCE_STATE, JHU.COUNTY, JHU.DATE, GEOSQL.COUNTY_POPULATION,
    SUM(JHU.CASES) AS COUNTY_CASES,
    DIV0(COUNTY_CASES,GEOSQL.COUNTY_POPULATION) AS CASES_PER_CAPITA_COUNTY,
    CASES_PER_CAPITA_COUNTY * 100000 AS CASES_PER_100K
  FROM STARSCHEMA_COVID19.PUBLIC.JHU_COVID_19 JHU
  LEFT JOIN (
    SELECT LEFT(CBG,5) AS FIPS, SUM(GEO.TOTAL_POPULATION) AS COUNTY_POPULATION
    FROM SAFEGRAPH_SAFEGRAPH_SHARE.PUBLIC.US_POPULATION_BY_SEX_GEO GEO GROUP BY FIPS) GEOSQL
    ON GEOSQL.FIPS = JHU.FIPS
  WHERE JHU.COUNTRY_REGION = 'United States' AND JHU.DATE = TO_DATE('2020-11-21') AND JHU.CASE_TYPE IN('Confirmed')
  AND JHU.PROVINCE_STATE = 'Utah' AND JHU.FIPS IS NOT NULL
  GROUP BY JHU.PROVINCE_STATE, JHU.COUNTY, JHU.FIPS, GEOSQL.COUNTY_POPULATION, JHU.DATE, JHU.CASE_TYPE
  ORDER BY JHU.FIPS),
utahCounties AS (
  SELECT FIPS, PROVINCE_STATE, COUNTY_NAME, DATE, COUNTY_POPULATION, COUNTY_CASES_ALLOCATED_BY_POPULATION,
  CASES_PER_CAPITA_COUNTY, CASES_PER_100K FROM
  (SELECT UTAHSQL.FIPS, JHU.PROVINCE_STATE, JHU.COUNTY, UTAHSQL.COUNTY_NAME, JHU.DATE, UTAHSQL.POPULATION AS COUNTY_POPULATION,
    (SUM(UTAHSQL.POPULATION) OVER (PARTITION BY UTAHSQL.AREA_NAME))::INTEGER AS AREA_POPULATION,
    (SUM(JHU.CASES) * (SUM(UTAHSQL.POPULATION) / AREA_POPULATION))::INTEGER AS COUNTY_CASES_ALLOCATED_BY_POPULATION,
    DIV0(COUNTY_CASES_ALLOCATED_BY_POPULATION,UTAHSQL.POPULATION) AS CASES_PER_CAPITA_COUNTY,
    CASES_PER_CAPITA_COUNTY * 100000 AS CASES_PER_100K
  FROM STARSCHEMA_COVID19.PUBLIC.JHU_COVID_19 JHU
  LEFT JOIN (
    SELECT AREA_NAME, STATE, FIPS, COUNTY_NAME, POPULATION
    FROM STARSCHEMA_COVID19_QA.PUBLIC.TBL_UTAH_FIPS) UTAHSQL
  ON JHU.PROVINCE_STATE = UTAHSQL.STATE AND JHU.COUNTY = UTAHSQL.AREA_NAME
  WHERE JHU.COUNTRY_REGION = 'United States' AND JHU.DATE = TO_DATE('2020-11-21') AND JHU.CASE_TYPE IN('Confirmed')
  AND JHU.PROVINCE_STATE = 'Utah' AND JHU.FIPS IS NULL
  GROUP BY JHU.PROVINCE_STATE, JHU.COUNTY, UTAHSQL.COUNTY_NAME, UTAHSQL.FIPS, UTAHSQL.POPULATION, JHU.DATE, JHU.CASE_TYPE, UTAHSQL.AREA_NAME
  ORDER BY UTAHSQL.FIPS))
SELECT * FROM counties
UNION
SELECT * FROM utahCounties;

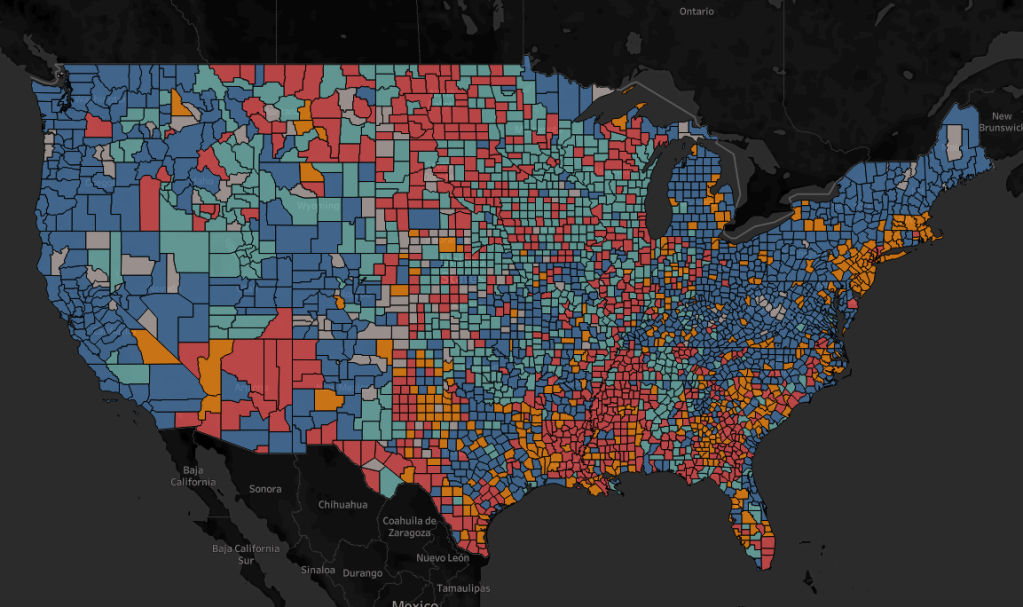

All Utah Counties filled in with Data instead of NULL

Making the Fix in Tableau
Now we can update our Tableau Workbook with these changes to make a map with Utah filled in with these allocations. See last week’s blog post for detailed instructions on building out the map in Tableau.

--County Data with Populations, Deaths and Cases and Utah County Areas Allocated by Population for Tableau TWB
WITH
cases AS (
    WITH counties AS (
    SELECT JHU.FIPS, JHU.PROVINCE_STATE, JHU.COUNTY, JHU.DATE, GEOSQL.COUNTY_POPULATION,
      SUM(JHU.CASES) AS COUNTY_CASES,
      DIV0(COUNTY_CASES,GEOSQL.COUNTY_POPULATION) AS CASES_PER_CAPITA_COUNTY,
      CASES_PER_CAPITA_COUNTY * 100000 AS CASES_PER_100K
    FROM STARSCHEMA_COVID19.PUBLIC.JHU_COVID_19 JHU
    LEFT JOIN (
      SELECT LEFT(CBG,5) AS FIPS, SUM(GEO.TOTAL_POPULATION) AS COUNTY_POPULATION
      FROM SAFEGRAPH_SAFEGRAPH_SHARE.PUBLIC.US_POPULATION_BY_SEX_GEO GEO GROUP BY FIPS) GEOSQL
      ON GEOSQL.FIPS = JHU.FIPS
    WHERE JHU.COUNTRY_REGION = 'United States' AND JHU.DATE = <Parameters.Date to Report> AND JHU.CASE_TYPE IN('Confirmed')
    AND JHU.FIPS IS NOT NULL
    GROUP BY JHU.PROVINCE_STATE, JHU.COUNTY, JHU.FIPS, GEOSQL.COUNTY_POPULATION, JHU.DATE, JHU.CASE_TYPE
    ORDER BY JHU.FIPS),
  utahCounties AS (
    SELECT FIPS, PROVINCE_STATE, COUNTY_NAME, DATE, COUNTY_POPULATION, COUNTY_CASES_ALLOCATED_BY_POPULATION,
      CASES_PER_CAPITA_COUNTY, CASES_PER_100K FROM
      (SELECT UTAHSQL.FIPS, JHU.PROVINCE_STATE, JHU.COUNTY, UTAHSQL.COUNTY_NAME, JHU.DATE, UTAHSQL.POPULATION AS COUNTY_POPULATION,
        (SUM(UTAHSQL.POPULATION) OVER (PARTITION BY UTAHSQL.AREA_NAME))::INTEGER AS AREA_POPULATION,
        (SUM(JHU.CASES) * (SUM(UTAHSQL.POPULATION) / AREA_POPULATION))::INTEGER AS COUNTY_CASES_ALLOCATED_BY_POPULATION,
        DIV0(COUNTY_CASES_ALLOCATED_BY_POPULATION,UTAHSQL.POPULATION) AS CASES_PER_CAPITA_COUNTY,
        CASES_PER_CAPITA_COUNTY * 100000 AS CASES_PER_100K
      FROM STARSCHEMA_COVID19.PUBLIC.JHU_COVID_19 JHU
      LEFT JOIN (
        SELECT AREA_NAME, STATE, FIPS, COUNTY_NAME, POPULATION
        FROM STARSCHEMA_COVID19_QA.PUBLIC.TBL_UTAH_FIPS) UTAHSQL
      ON JHU.PROVINCE_STATE = UTAHSQL.STATE AND JHU.COUNTY = UTAHSQL.AREA_NAME
      WHERE JHU.COUNTRY_REGION = 'United States' AND JHU.DATE = <Parameters.Date to Report> AND JHU.CASE_TYPE IN('Confirmed')
      AND JHU.PROVINCE_STATE = 'Utah' AND JHU.FIPS IS NULL
      GROUP BY JHU.PROVINCE_STATE, JHU.COUNTY, UTAHSQL.COUNTY_NAME, UTAHSQL.FIPS, UTAHSQL.POPULATION, JHU.DATE, JHU.CASE_TYPE, UTAHSQL.AREA_NAME
      ORDER BY UTAHSQL.FIPS))
  SELECT * FROM counties
  UNION
  SELECT * FROM utahCounties
),
deaths AS(
  WITH countiesDeaths AS (
    SELECT JHU.FIPS, JHU.PROVINCE_STATE, JHU.COUNTY, JHU.DATE, GEOSQL.COUNTY_POPULATION,
      SUM(JHU.CASES) AS COUNTY_DEATHS,
      DIV0(COUNTY_DEATHS,GEOSQL.COUNTY_POPULATION) AS DEATHS_PER_CAPITA_COUNTY,
      DEATHS_PER_CAPITA_COUNTY * 100000 AS DEATHS_PER_100K
    FROM STARSCHEMA_COVID19.PUBLIC.JHU_COVID_19 JHU
    LEFT JOIN (
      SELECT LEFT(CBG,5) AS FIPS, SUM(GEO.TOTAL_POPULATION) AS COUNTY_POPULATION
      FROM SAFEGRAPH_SAFEGRAPH_SHARE.PUBLIC.US_POPULATION_BY_SEX_GEO GEO GROUP BY FIPS) GEOSQL
      ON GEOSQL.FIPS = JHU.FIPS
    WHERE JHU.COUNTRY_REGION = 'United States' AND JHU.DATE = <Parameters.Date to Report> AND JHU.CASE_TYPE IN('Deaths')
    AND JHU.FIPS IS NOT NULL
    GROUP BY JHU.PROVINCE_STATE, JHU.COUNTY, JHU.FIPS, GEOSQL.COUNTY_POPULATION, JHU.DATE, JHU.CASE_TYPE
    ORDER BY JHU.FIPS),
  utahCountiesDeaths AS (
    SELECT FIPS, PROVINCE_STATE, COUNTY_NAME, DATE, COUNTY_POPULATION, COUNTY_DEATHS_ALLOCATED_BY_POPULATION,
      DEATHS_PER_CAPITA_COUNTY, DEATHS_PER_100K FROM
      (SELECT UTAHSQL.FIPS, JHU.PROVINCE_STATE, JHU.COUNTY, UTAHSQL.COUNTY_NAME, JHU.DATE, UTAHSQL.POPULATION AS COUNTY_POPULATION,
        (SUM(UTAHSQL.POPULATION) OVER (PARTITION BY UTAHSQL.AREA_NAME))::INTEGER AS AREA_POPULATION,
        (SUM(JHU.CASES) * (SUM(UTAHSQL.POPULATION) / AREA_POPULATION))::INTEGER AS COUNTY_DEATHS_ALLOCATED_BY_POPULATION,
        DIV0(COUNTY_DEATHS_ALLOCATED_BY_POPULATION,UTAHSQL.POPULATION) AS DEATHS_PER_CAPITA_COUNTY,
        DEATHS_PER_CAPITA_COUNTY * 100000 AS DEATHS_PER_100K
      FROM STARSCHEMA_COVID19.PUBLIC.JHU_COVID_19 JHU
      LEFT JOIN (
        SELECT AREA_NAME, STATE, FIPS, COUNTY_NAME, POPULATION
        FROM STARSCHEMA_COVID19_QA.PUBLIC.TBL_UTAH_FIPS) UTAHSQL
      ON JHU.PROVINCE_STATE = UTAHSQL.STATE AND JHU.COUNTY = UTAHSQL.AREA_NAME
      WHERE JHU.COUNTRY_REGION = 'United States' AND JHU.DATE = <Parameters.Date to Report> AND JHU.CASE_TYPE IN('Deaths')
      AND JHU.PROVINCE_STATE = 'Utah' AND JHU.FIPS IS NULL
      GROUP BY JHU.PROVINCE_STATE, JHU.COUNTY, UTAHSQL.COUNTY_NAME, UTAHSQL.FIPS, UTAHSQL.POPULATION, JHU.DATE, JHU.CASE_TYPE, UTAHSQL.AREA_NAME
      ORDER BY UTAHSQL.FIPS))
  SELECT * FROM countiesDeaths
  UNION
  SELECT * FROM utahCountiesDeaths
)
SELECT
  cases.*,
  deaths.COUNTY_DEATHS,
  deaths.DEATHS_PER_CAPITA_COUNTY,
  deaths.DEATHS_PER_100K
FROM cases
LEFT JOIN deaths on cases.FIPS = deaths.FIPS
WHERE cases.COUNTY <> 'unassigned' AND cases.FIPS IS NOT NULL
  AND cases.PROVINCE_STATE IN ('Alabama','Alaska','Arizona','Arkansas','California'
  ,'Colorado','Connecticut','Delaware','District of Columbia','Florida','Georgia','Hawaii'
  ,'Idaho','Illinois','Indiana','Iowa','Kansas','Kentucky','Louisiana','Maine','Maryland'
  ,'Massachusetts','Michigan','Minnesota','Mississippi','Missouri','Montana','Nebraska'
  ,'Nevada','New Hampshire','New Jersey','New Mexico','New York','North Carolina'
  ,'North Dakota','Ohio','Oklahoma','Oregon','Pennsylvania','Rhode Island','South Carolina'
  ,'South Dakota','Tennessee','Texas','Utah','Vermont','Virgin Islands','Virginia'
  ,'Washington','West Virginia','Wisconsin','Wyoming');

Conclusion
Building this data set and visualizations was a rewarding analytical experience. Adding in the additional data to allocate cases to the County level in Utah was a fantastic data challenge. I am happy to share my fix with you. Happy (Utah County level COVID) Querying!

Appendix of Tableau Workbook, SQL and Tableau Public
Tableau Public: https://public.tableau.com/views/COVID-19QuadrantMaps/CountyCasesvsDeathRatesMapUtah?:language=en&:display_count=y&publish=yes&:origin=viz_share_link

Tableau Workbook on GitHub: https://github.com/BigDataDave1/COVIDQuadrant/blob/main/COVID-19%20Quadrant%20Maps%20Utah.twb

Population Allocation SQL on GitHub: https://github.com/BigDataDave1/COVIDQuadrant/blob/main/covid_quradrant_utah_allocation.sql

CTE on GitHub: https://github.com/BigDataDave1/COVIDQuadrant/blob/main/covid_quadrant_map_cte_utah.sql

CTE for Tableau in GitHub: https://github.com/BigDataDave1/COVIDQuadrant/blob/main/covid_quadrant_map_tableau_cte_utah.sql
